  Products :: Shock Blaster
Overall view on nozzles for BIG BLASTER
Normal and high temperature areas
Blow Pipe Spreader Nozzle Fan Jet Angle
Nozzle
Fan Jet Blow
Nozzle
Fan Jet Blow
Nozzle
asymmetrical
Slot Nozzle Isobaric Sword Nozzle


high temperature areas
Blow Head Double Blow Head Fan Jet Angle Nozzle Fan Jet Blow Nozzle Fan Jet Blow
Nozzle
asymmetrical
Changeable Nozzle System
Fan Jet Blow Nozzle
Changeable Nozzle System
Fan Jet Angle Nozzle

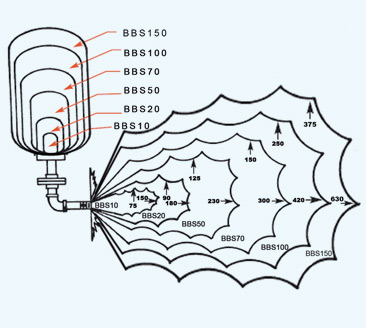

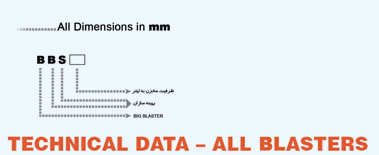

Model Volume CU.M Vessel Length (mm) Vessel Diameter (mm) Discharge Size (mm)
BBS10 0.007 420 210 60
BBS20 0.019 550 210 60
BBS50 0.05 590 360 60
BBS70 0.067 790 360 60
BBS100 0.11 600 500 100
BBS150 0.15 800 500 100
Accessories:
1-Pressure gage: 10bar
2-Manual Air valve
3-Pneumatil pilot valve with magnetic coil (220VAC) (Vertical Type) 4-Hanging device (QTY: 2)
Nominal pressure: 12bar
Operating Pressure: 8bar
Vessel Internal Nozzle: Multi Nozzle
